High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W

products

High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W

Home Products LED High Bay Lights UFO LED High bay Light
High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W
High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W

High power IP65 outdoor ind...

High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W

  • 1.Power:

    150W
  • 2.Working Voltage:

    90-277V 50Hz
  • 3.PF:

    :0.95
  • 4.Main Material:

    Aluminum
  • 5.CCT:

    3000-6500k
  • 6.Lumen:

    110lm/w
  • 7.Lifetime:

    50,000h
  • ...:

  • :

  • Product description:

    High power IP65 outdoor industry aluminum alloy ufo led high bay light 150W
  • Details

New design 100w UFO led high bay light SMD3030 3years warranty

Input Voltage

AC90-277V

Current Frequency

50HZ-60HZ

LED Light Source

SMD3030

LED Consumption

150W

System Consumption

150 W ±5W

Led Luminous Efficiency

130lm /W

LED Initial Flux

13000 Lm±5%

lamps Efficiency

>92%

Illuminance Uniformity

>0.8

Color Temperature

3000k-6000K

Color Rendering Index

Ra>75

Light Distribution

symmetrical/Rectangle

Light Design

LED+ lens second light

LED Junction Temperature

≤55centigrade



Working Temperature

-35centigrade

-+ 55centigrade



Storage Temperature

- 40centigrade

 ~ +55centigrade

(25centigrade

 is better)

IP Grade

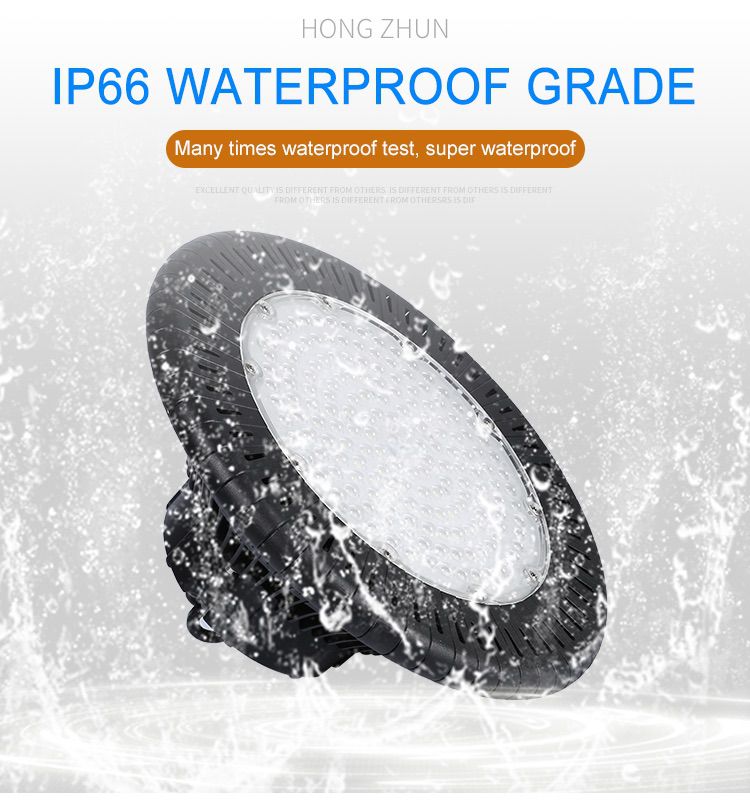

IP65

Net weight

10KG

Working Life-span

50000H

Power line

1.0mm2

Connect Wire

Brown

L

Blue

N

Yellow +Green

G

Certificate

CE , ROHS,PSE

The color of the lamp shell

Black

HZ-ufo-100A_01HZ-ufo-100A_02HZ-ufo-100A_03HZ-ufo-100A_05HZ-ufo-100A_07HZ-ufo-100A_09HZ-ufo-100A_10  HZ-ufo-100A_11
