  • 1.Power:

    80W-250w
  • 2.Working Voltage:

    AC85-265V
  • 3.Led:

    SMD3030
  • 4.Install diameter:

    60mm
  • 5.Main Material:

    Aluminum
  • 6.CCT:

    3000-6500k
  • 7.Lumen:

    110-130lm/w
  • Product description:

    New design Road Project Lighting 80W 100W 150W 200W led street light outdoor
  • Details

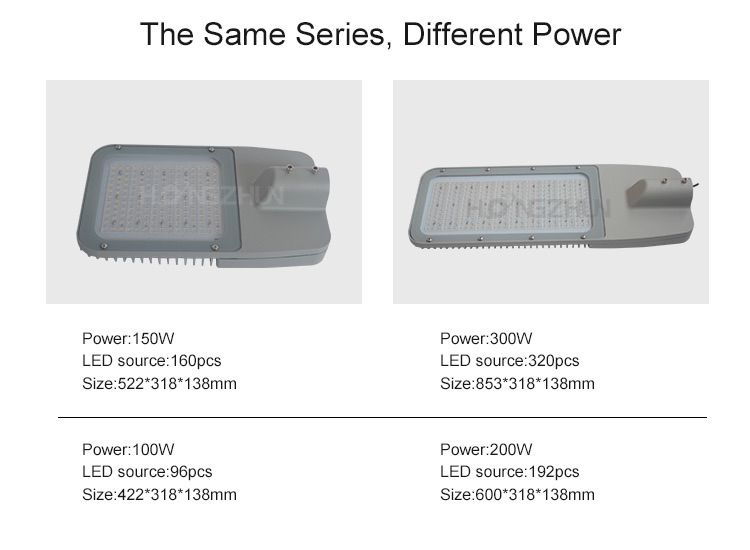

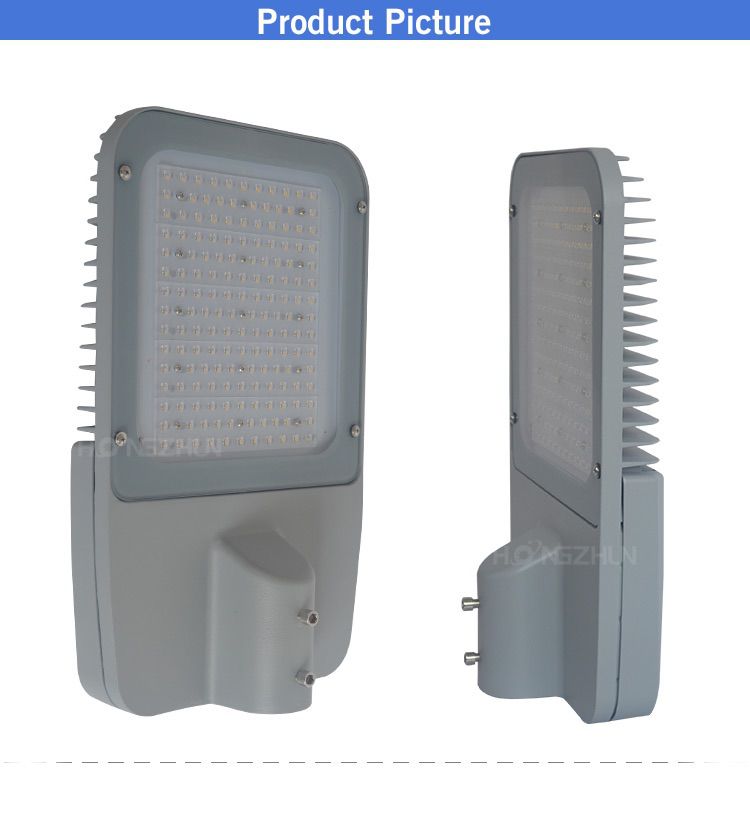

New design Road Project Lighting  80W 100W 150W 200W led street light outdoor

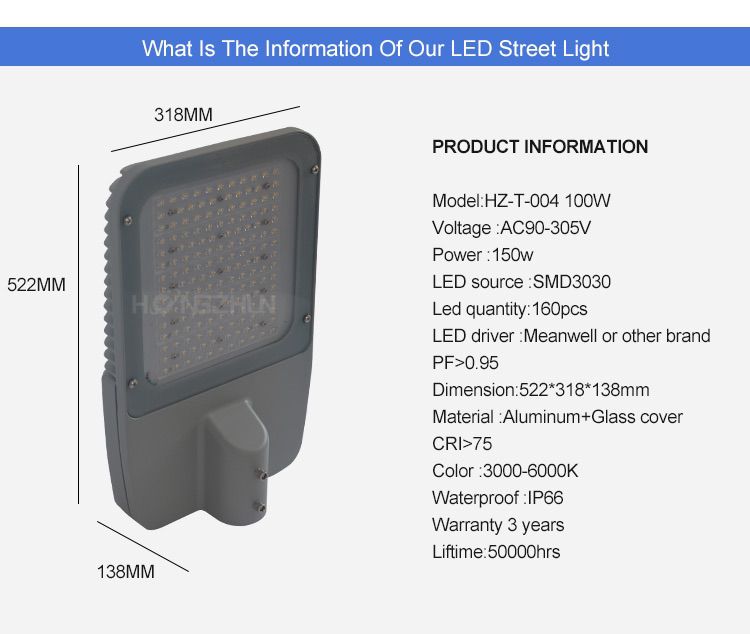

Item No HZ-LD-012 100w HZ-LD-017  150w  HZ-LD-017 2000w HZ-LD-017  240w
Dimension L*W*H(mm) 422*318*138              522*318*138       600*318*138    850x366x198
Installation Height 8-10M 12-14M 15-18M 853*318*138
Luminous flux 120LM 》120LM 》120LM 》120LM
LED Type SMD3030 SMD3030 SMD3030 SMD3030
LEDs qty 90pcs 180pcs 360pcs 360pcs
LED Driver  PH ,MEANWELL PH , MEANWELL  PH , Meanwell PH , Meanwell
Material  Aluminum  Aluminum  Aluminum  Aluminum
body
Install pole diameter 60mm 60mm 60mm 60mm
Beam angle  140*90° 140*90° 140*90° 140*90°
Power factor  >0.98 >0.98 >0.98 >0.98
CRI >80 >80 >80 >80
Lifetime  50000hrs 50000hrs  50000hrs 50000hrs
Dimming yes yes yes yes
 Dimming Method  PWM or Time interval  PWM or Time interval  PWM or Time interval  PWM or Time interval
Available Phtocell  Yes yes yes yes
Lightning protection device SPD 10KV SPD 10KV SPD 10KV SPD 10KV
Waterproof  IP66 IP66 IP66 IP66
Color  3000-6000K  3000-6000K 3000-6000k 3000-6000k
Warranty  3-5years  3-5years  3-5years  3-5years
Ceritifcates  CE, ROHS  CE, ROHS , CE , ROHS  CE , ROHS
SASO,UL driver  SASO , UL DRIVER SASO , UL driver  SASO , UL driver
Working temperature  -30degree  -30degree  -30degree -30degree
~65degee ~65degree  ~65degree ~65degree
