Light Housing

Material

Aluminum profile

Colour scheme

White

Installation type

Rotatory knob or holding clamp

Model

LS6870-RAIL-570

LS6870-RAIL-1136

LS6870-RAIL-1418

Dimensions( Length x Breadth x Height)

570 x 68 x 70mm

1,136 x 68 x 70mm

1,418 x 68 x 70mm

Weight

Approx.4 kg

Approx.4 kg

Protection type

IP40

Illuminant properties

Illuminant Type

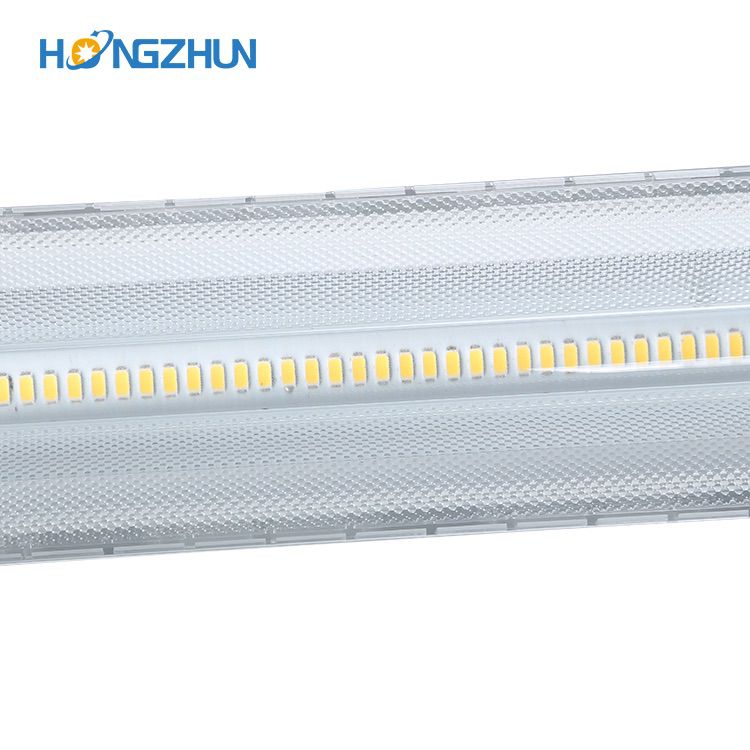

LED-Moduls with Mid-Power-LEDs

Optical System

Wide,Narrow,wide,Flat and double Asymmetric light distribution

Luminous Output

130lm/w   150lm/w

Colour Temperature

3,000K / 4,000K / 5,000K / 6,000K

Colour Rendering Index(Ra)

> 80

Dimming( Power control)

With / without DALI

Lifetime at (ta)30°

50,000 h

Electronic Properties

Power Rating

24W

40 W

60W

Operating voltage

AC 180 - 240V      (AC100-277V)

Frequency

50 / 60 Hz

Installation Requirements

Application areas

Halls,warehouses,manufacturing facilities,sales premises

Specific Installation

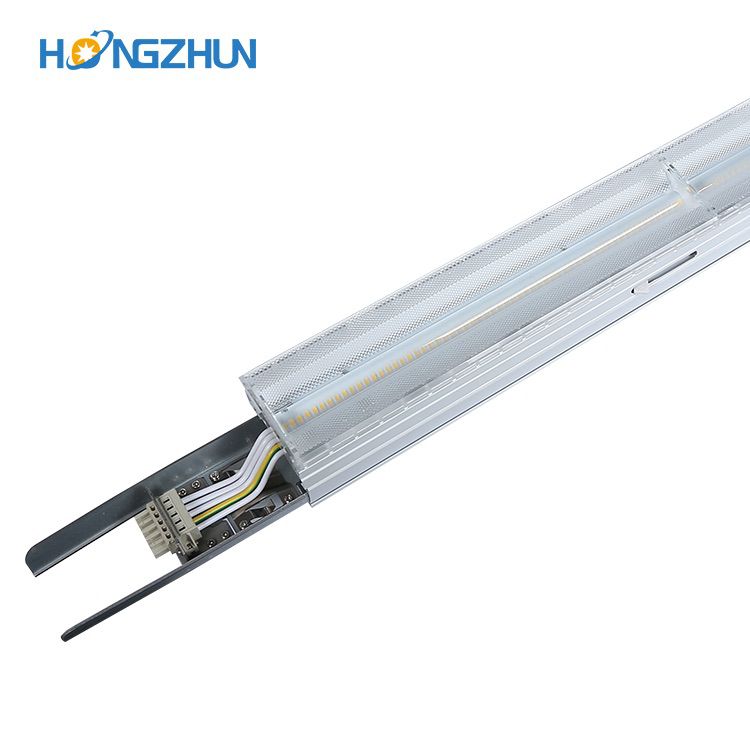

Rail- Light System

Installation height

3 to 20m

Permissible ambient temperature (ta) 30°

-25℃ to +35℃

Other properties

Certification

CE / TUV / SAA / UL

Connection with circuit breaker

300 Pcs

180 Pcs

120 Pcs

Special features

End cover

IP20

Blind cover

572mm

1,430 mm

1,430 mm

Mounting Rail

572mm

1,430 mm

1,430 mm
