150w new led street lights head

products

Home Products LED Street Lights
top quality 100w 150w new led street lights head
top quality 100w 150w new led street lights head
top quality 100w 150w new led street lights head
top quality 100w 150w new led street lights head
top quality 100w 150w new led street lights head

top quality 100w 150w new l...

  • 1.Power:

    100W 150W
  • 2.Working Voltage:

    AC85-265V
  • 3.Led:

    SMD3030 ,Osram
  • 4.Install diameter:

    60mm
  • 5.Main Material:

    Aluminum
  • 6.CCT:

    3000-6500k
  • 7.Lumen:

    110-130lm/w
  • :

  • Product description:

    top quality 100w 150w new led street lights head
  • Details

top quality 100w 150w new led street lights head


Item No HZ-T-012 100w HZ-T-012 150W HZ-T-012 200w HZ-T-012 240w HZ-T-012 300w
Dimension L*W*H(mm) 422*318*138  522*318*138  600*318*138  600*318*138  853*318*138
Installation Height 8-10M 8-10M 10-12M 12-15M 15-18M
Luminous flux 120LM 》120LM 》120LM 》120LM 》120LM
LED Type SMD3030 SMD3030 SMD3030 SMD3030 SMD3030
LEDs qty 96pcs 150pcs 192pcs 256PCS 320pcs
LED Driver  PH ,MEANWELL PH , MEANWELL  PH , Meanwell PH , Meanwell PH , Meanwell
Material  Aluminum  Aluminum  Aluminum  Aluminum  Aluminum
body
Install pole diameter 60mm 60mm 60mm 60mm 60mm
Beam angle  140*90° 140*90° 140*90° 140*90° 140*90°
Power factor  >0.98 >0.98 >0.98 >0.98 >0.98
CRI >80 >80 >80 >80 >80
Lifetime  50000hrs 50000hrs  50000hrs 50000hrs 50000hrs
Dimming yes yes yes yes yes
 Dimming Method  PWM or Time interval  PWM or Time interval  PWM or Time interval  PWM or Time interval  PWM or Time interval
Available Phtocell  Yes yes yes yes yes
Lightning protection device SPD 10KV SPD 10KV SPD 10KV SPD 10KV SPD 10KV
Waterproof  IP66 IP66 IP66 IP66 IP66
Color  3000-6000K  3000-6000K 3000-6000k 3000-6000k 3000-6000k
Warranty  3-5years  3-5years  3-5years  3-5years  3-5years
Ceritifcates  CE, ROHS  CE, ROHS , CE , ROHS  CE , ROHS  CE , ROHS
SASO,UL driver  SASO , UL DRIVER SASO , UL driver  SASO , UL driver  SASO , UL driver
Working temperature  -30degree  -30degree  -30degree -30degree -30degree
~65degee ~65degree  ~65degree ~65degree ~65degree

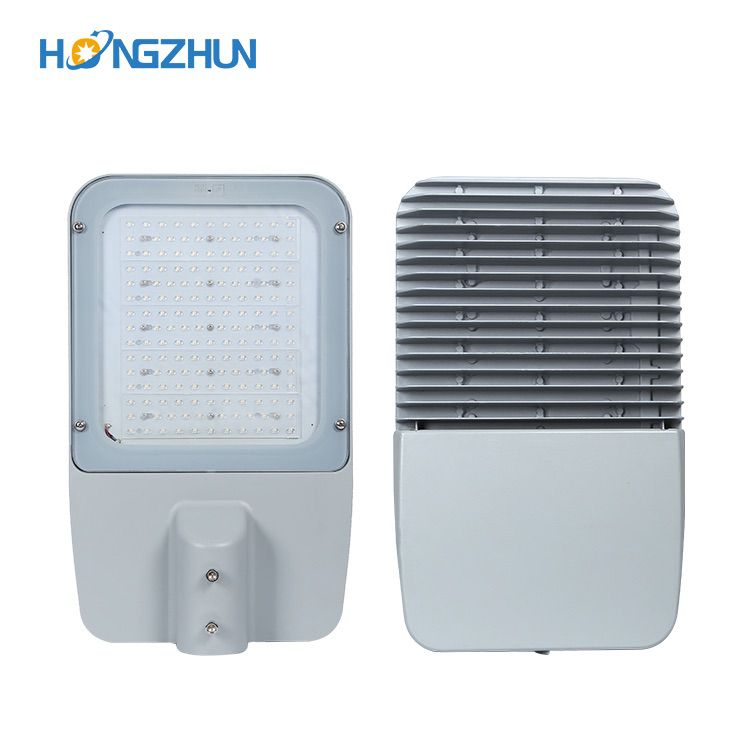

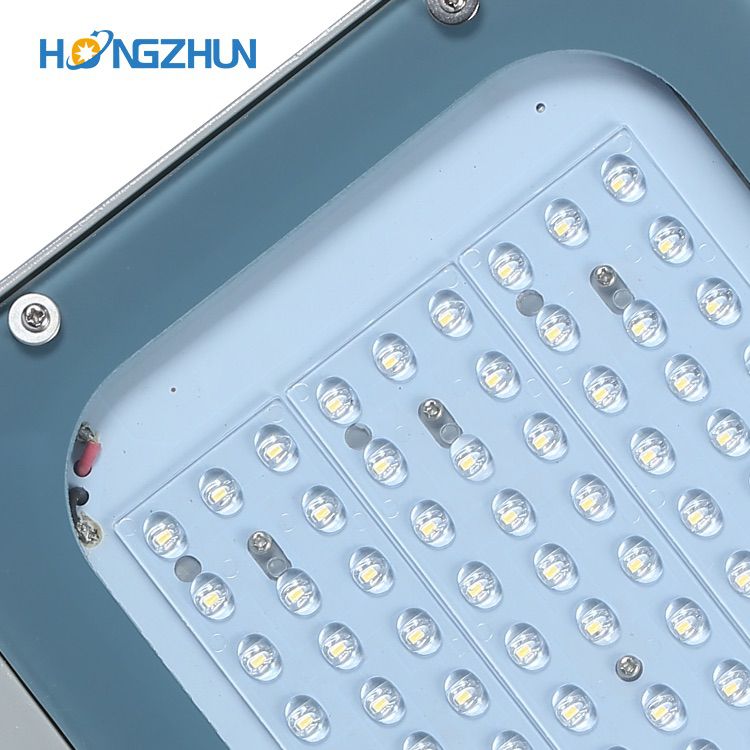

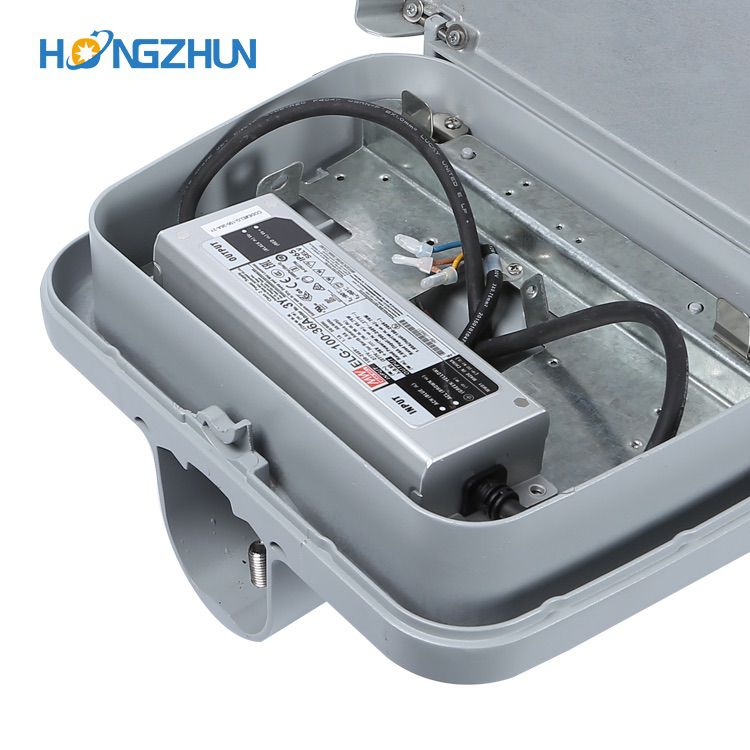

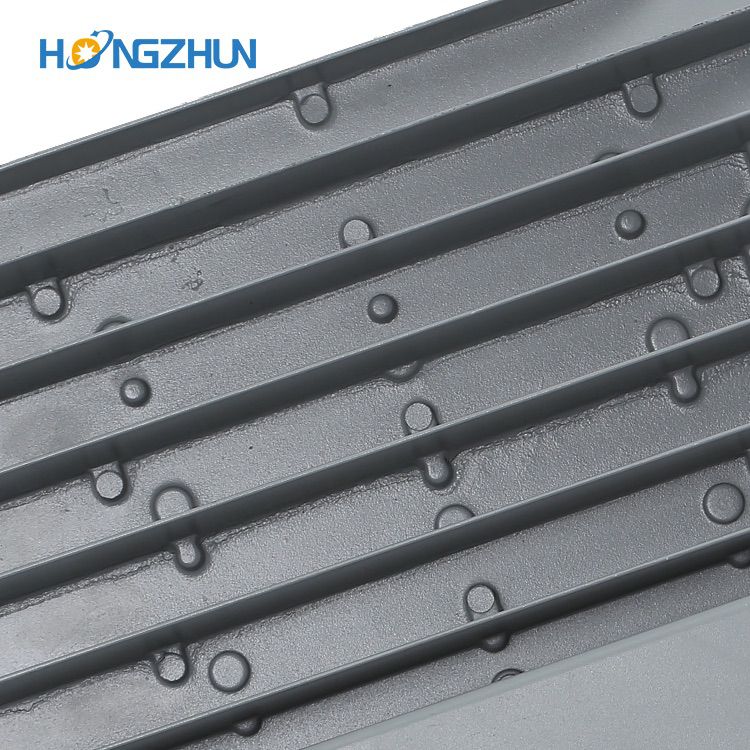

Products photos :

150w new led street lights head 150w new led street lights head HZ-T-012_05HZ-T-012_06HZ-T-012_07HZ-T-012_08HZ-T-012_02HZ-T-012_03

*
*
