High power 60w for two modules SMD3030 LED street light IP65 outdoor lamp

High power 60w for two modules SMD3030 LED street light IP65 outdoor lamp

1.Power:
50W
2.Working Voltage:
AC100-240V
3.Led :
SMD3030
4.IP grade:
IP65
5.Main Material:
Aluminum
6.CCT:
3000-6500k
7.Lumen:
110lm/w
8.Size:
475*260*100mm
9. Lifetime:
>50,000hours
10.Certification:
CE,Rohs
Product description:

nicole-sun@hongzhunled.cn

Asking price

Similar items

Details

High power 60w for two modules SMD3030 LED street light IP65 outdoor lamp

Housing
-High pressure die-casting aluminum housing;
-Double powder coating;
-5mm Clear tempered safety glass with high light transmittance;

Technical Data
-AC100-305V, 50/60Hz;
-Power Factor:>0.95
-Surge Voltage>10KV
-Luminaire Efficacy: >135lm/W
-Color Temperature:3000K, 4000K, 5000K, 6000K
-Color Rendition Index: CRI>80
-Beam Angle: 120×50°,150×65°,150×60°, 140×30°, 148°
-Control Mode：turn on/off, PLC, ZigBee, Light Operated Control
-Working Temperature: -25℃--50℃
-IP66

Accessories

-PLC control Module;
-Thunder protection Module

LED light SMD3030 60w

high power led street light

IP65 outdoor light 60W SMD3030

Features of led streetlight

Aluminum lamp body with modularization design;
Unique optical and heat dissipation integration design to ensure lamp work efficiently and stably;
Optional installation of automatic controlling system to self-adjust power and improve efficiency;
IP65 water-proof and dust-proof protection grade for LED light source module and IP66 for power supply;
It\'s easy to adjust the lamp installation, suitable for pipe with 60mm diameter cross arm installation;
Flexible and convenient installation wildely used square, park, street, highway landscape road lighting.

waterproof led light manufacturer

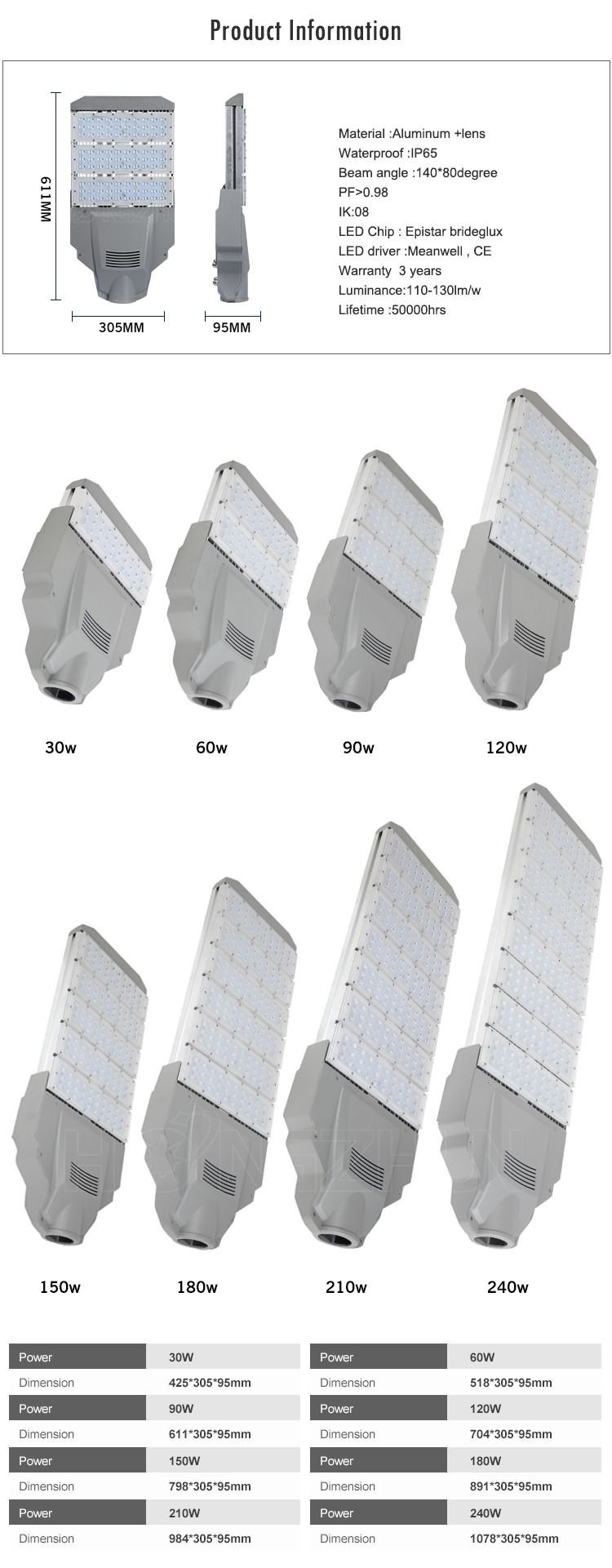

Model	HZ-1-LD03-A
Power	60w	120w	180w
LED type	SMD 3030	SMD 3030	SMD 3030
Input Volt	AC100-240V	AC100-240V	AC100-240V
IP grade	IP65
Power Factor	>0.95	>0.95	>0.95
Lumen	>100	>100	>100
Color Temp	3000-6500K	3000-6500K	3000-6500K
Coler Render	>75	>75	>75
Beam Angle	120°
Product size(mm)	51830595	70430595	89130595
Light material	aluminum
Work Temp	—15℃~+50℃
Work Humidity	10%~90%
Life/Warranty	50,000hrs / 3 years
