industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot
industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot
industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot
industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot

industrial 120w led high bay ...

  • 1.Power:

    120W
  • 2.Working Voltage:

    AC100-240V
  • 3.Led :

    Brideglux , Epistar
  • 4.Power Factor:

    >0.95
  • 7.Main Material:

    Aluminum
  • 8.CCT:

    3000-6500k
  • 9.Lumen:

    110lm/w
  • 10.LED driver :

    CE , MEANWELL
  • 11. Lifetime:

     >50,000hours
  • 12.Certification:

    CE,Rohs
  • Product description:

    industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot
  • Details

 industrial 120w led high bay light 120lm/w taiwan led epistar high quality driver 4pcs/lot


Technical Parameters

Item No.:

 HZ-HB-001 120W

Input Voltage:

AC100-295V

Led chip:

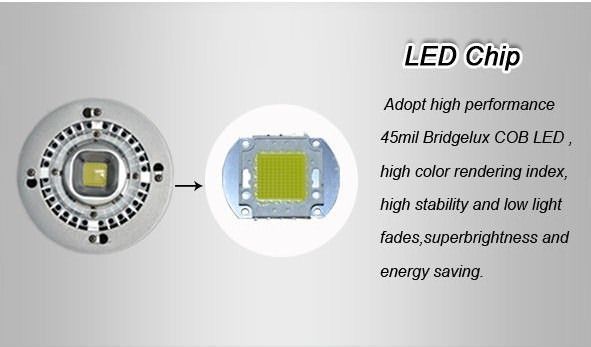

U.S.BRIDGELUX COB 45mil

Led driver:

1pcs 120W Power supply

LED Power:

120W

LED Qty:

1pcs * 120W

LED Working Voltage:

DC30-36V

LED Luminous Flux

Warm white

10800LM

Pure white

12000LM

Cool white

12000LM

Viewing Angle:

45°

90°

120°

CRI:

Ra>70

Light Design:

LED+reflector

LED Junction Temperature:

115 ºC

Working Temperature:

 -25ºC~50ºC

IP Grade:

IP54

System Working Life-span:

>40000H

Driver Certificate:

 UL FCC CE TUV

The color of the lamp shell

Black and silver is available



Products details :

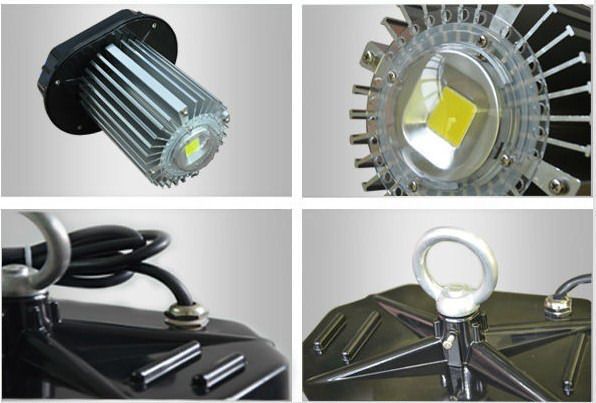

high bay led industrial 120w CEhigh bay led industrial 120w bridegluxIP65 high bay led industrial 120w9ac30da4ffb8046f7f5079a4dfeadc3b_lWaterproof high bay led industrial 120w

Applications
LED mining lamp workshop, factory , warehouse , highway toll stations , gas stations, supermarkets, exhibition halls filter, stadiums and other places need industrial lighting.




Function

1 , the use of independent single package (20W -100W) power LED as the light source . Using the multi-chip integrated single source module design, selection of imported high brightness semiconductor chips with high thermal conductivity , low luminous decay , pure light color and no ghosting .

2 , light surface anodic oxidation processing , compact appearance . Corrosion-resistant, dustproof performance.

3.energy saving effect , the use of high-power LED light source is equipped with imported high-efficiency power supply , saving more than 80% , compared with sodium .

4.green friendly , lead, mercury and other pollution elements , no environmental pollution.

5.safe, efficient, flexible and can be adjusted to any angle , versatility, a wide range of applications.

6 , good color , light color options, more vivid color.Variety physical performance to meet the needs of different environments , eliminating the traditional lamp color caused by high or low visual comfort depressed mood, improve worker efficiency.

7 using the constant current control for wide voltage (AC100V~ 240V) to overcome the power factor ballasts , noise pollution and unstable light caused arising from work to avoid fatigue caused eye irritation .

8.decorative excellent results , with a special surface treatment process , the appearance can choose a variety of colors, simple installation, easy disassembly, a wide range.





*
*
