150w new design led high bay light with 3 years warranty

products

1.LED type:SMD3030

2.Input Voltage:AC85-265V;

3.IP Grade:IP44;

4.CCT:2700-6500K;

5.CRI:Ra>70;

6.Beam Angle:45/60/90/120°;

7.Main Material:Die-casting Aluminum

8. Lifetime: >50,000hours;

9.Certification:CE&RoHS

Home Products LED High Bay Lights

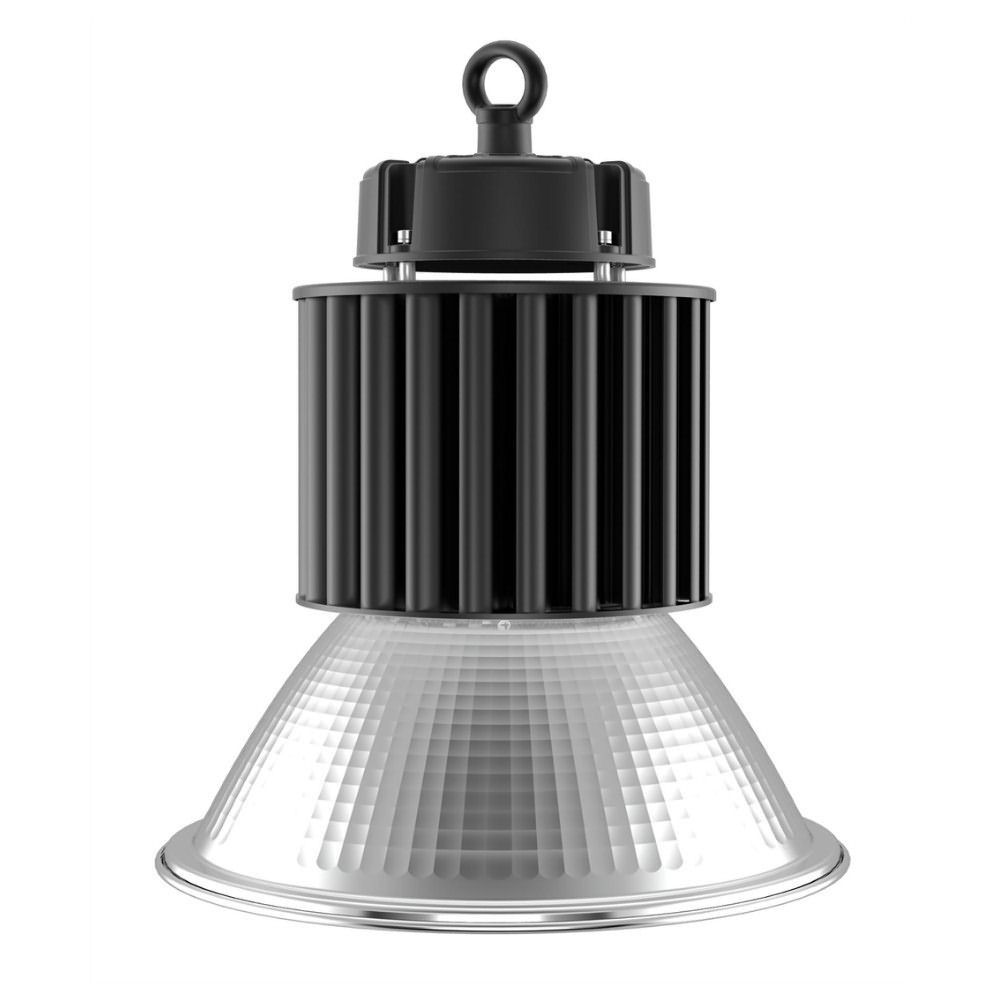

New design  150w led high bay light with 3 years warranty
New design  150w led high bay light with 3 years warranty
New design  150w led high bay light with 3 years warranty
New design  150w led high bay light with 3 years warranty
New design  150w led high bay light with 3 years warranty

New design 150w led high b...

1.LED type:SMD3030

  • 1.Power:

    150W
  • 2.Working Voltage:

    AC95-305V
  • 3.Led :

    Philips,Osram
  • 4.LED brand:

    Meanwell,CE
  • 7.Main Material:

    Aluminum
  • 8.CCT:

    3000-6500k
  • 9.Lumen:

    110lm/w
  • 10.Beam angle:

    60/90/120degree
  • Product description:

    New design philips 150w led high bay light with 3 years warranty
  • Details

New design philips 150w led high bay light with 3 years warranty

Model

H60W-A



H100W-A



H150W-A

H200W-A

H250W

Power  Consumption

60W

100W

150W

200W

250W

System Power  Consumption

62W

102W

153W

204W

255W

LED Luminous  Efficiency

>100LM/W

>100LM/W

>100LM/W

>100LM/W

>100LM/W

Lumen Output

6600LM

11000LM

16000LM

22000LM

27500LM

Beam Angle Optional

25/60/110

25/60/110

25/60/110

25/60/110

25/60/110

Input Voltage

AC100-240V

AC100-240V

AC100-240V

AC100-240V

AC100-240V

Power Factor

>0.95

>0.95

>0.95

>0.95

>0.95

Power Efficiency

>90%

>90%

>90%

>90%

>90%

CCT

2700-7000K

2700-7000K

2700-7000K

2700-7000K

2700-7000K

CRI

WW>70 CW>75

WW>70 CW>75

WW>70 CW>75

WW>70 CW>75

WW>70 CW>75

Working  Temperature

-40~50

-40~50

-40~50

-40~50

-40~50

Humidity

10%~90%

10%~90%

10%~90%

10%~90%

10%~90%

Material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

IP Rating

IP54

IP54

IP54

IP54

IP54

Working Life

>50000hrs

>50000hrs

>50000hrs

>50000hrs

>50000hrs

Size

¢346*364mm

¢346*384mm

¢346*414mm

¢346*464mm

¢346*457mm










Products details :

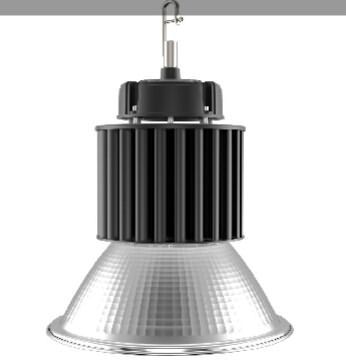

150w led high bay light

philips 150w led high bay light

200w led high bay light



100w led high bay light

150w led high bay light

120w led high bay light


60W-250W Industrial High Bay Light Series:

1. Imported original Bridgelux chip, authorized Shenzhen based supplier.
2. High technology pahse change die-casting aluminum radiator, small size and can support bigger power, with good heat dissipation.

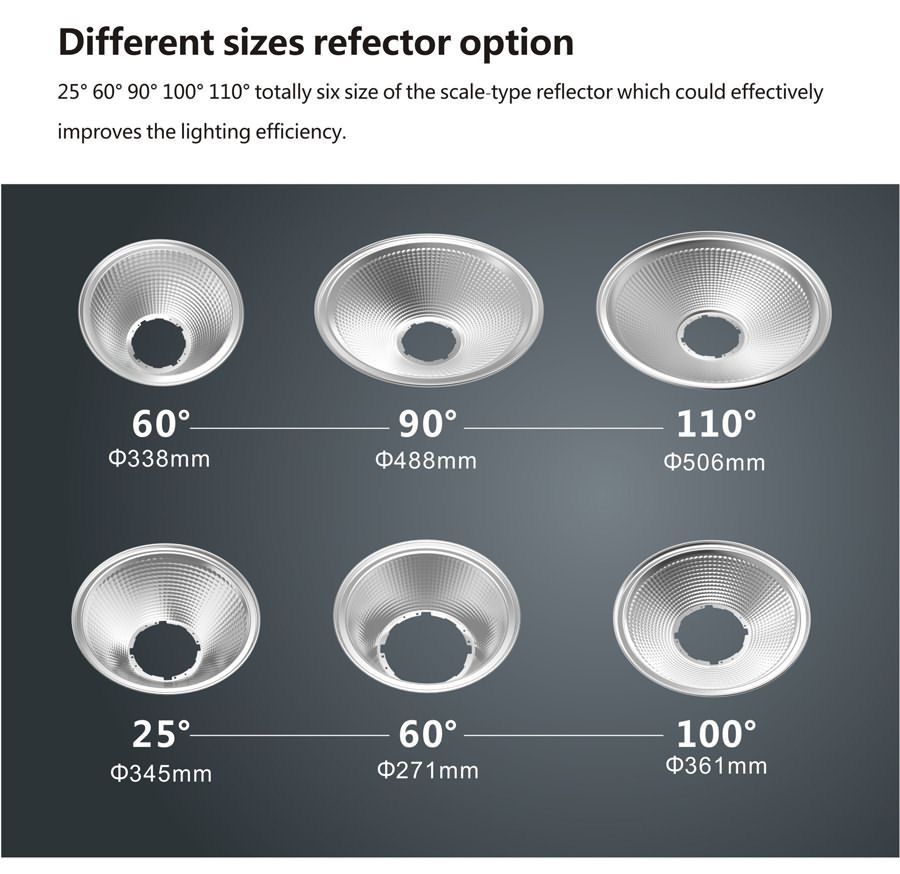

3. Patented design high purity aluminum reflector with 60°/90°/120° AL or PC reflector for options.
4. Toughened optical glass lens, with high transimmision of light, strong resistant of corrosion and never turn yellow.
5. Meanwell driver for all 400w led high bay light
6. 72 Hours aging test, each lamp will be checked strictly by QC before packing.
7. Tough box designed for 400w led high bay light, keeping the safety of goods during the transportation.
8. Fast delivery, 5-15 working days depend on order quantity after payment confirmed



FAQ:

Driver quality

Sinces driver is most inportant part of led light,instead of producing of ourselves,we cooperate with brand driver factories.and CE/UL/SAA/TUV approval drivers optional,the will solve your worriesand troubles.


Warranty

36 moths from the manufacturing date


MOQ

Less MOQ qty is accepatable,but sample charge is needed


Packaging

Neutral white box,customized box is welcome


Sticker

We could you put your LOGOand company information in the sticker for both lamp and box,and laser printing and silk printing on the lamp and driver box is also acceptable when the reaches the certain qty


OEM

OEM is welcome


Delivery

Sample with 10 days ,order with 12-15 days

You are the factory or trading company?

we are the factory drict sale ,provide factory price ang good after service


*
*
