Basic Parameter :
| Product name | 150W LED Canopy Light |
| Item No. | HZ-(CW) |
| IP Grade | IP65 |
| Total Power | 150W±5% |
| Total flux(LM) | 14300~16000LM |
| Power Factor | >0.95 |
| Voltage | AC100~277V 50~60HZ |
| Color Temp. | 5300~6500K |
Electric Parameter:
| Input Voltage (VAC) | 100-277V |
| Frequency Range (HZ) | 50/60HZ |
| Power Factor (PF) | >0.95 |
| Power Efficiency | 90% |
| Working Voltage (VDC) | 42V |
| LED Q\'TY | 72pcs |
| System Consumption (W) | 150W±5% (Surface mounted) |
| LED Luminous Efficiency | >95Lm/W |
| LED Initial Flux | 14300-16000Lm |
| Lamp\'s Effciency (%) | >85% |
Other Parameter:
| Color of Light | 5500K-6500K |
| Color Rendering Index (CRI) | 75Ra |
| Light Distribution Curve/Beam Pattern | Batwing/rectangle |
| Junction Temperature at Ta25° | 80℃ |
| Working Environment | -20℃~+50℃/10-90RH |
| IP Rating | IP65 |
| Working Life | 50,000Hrs |
| Light Body & Lampshade Material |
Aluminum alloy+Glass |

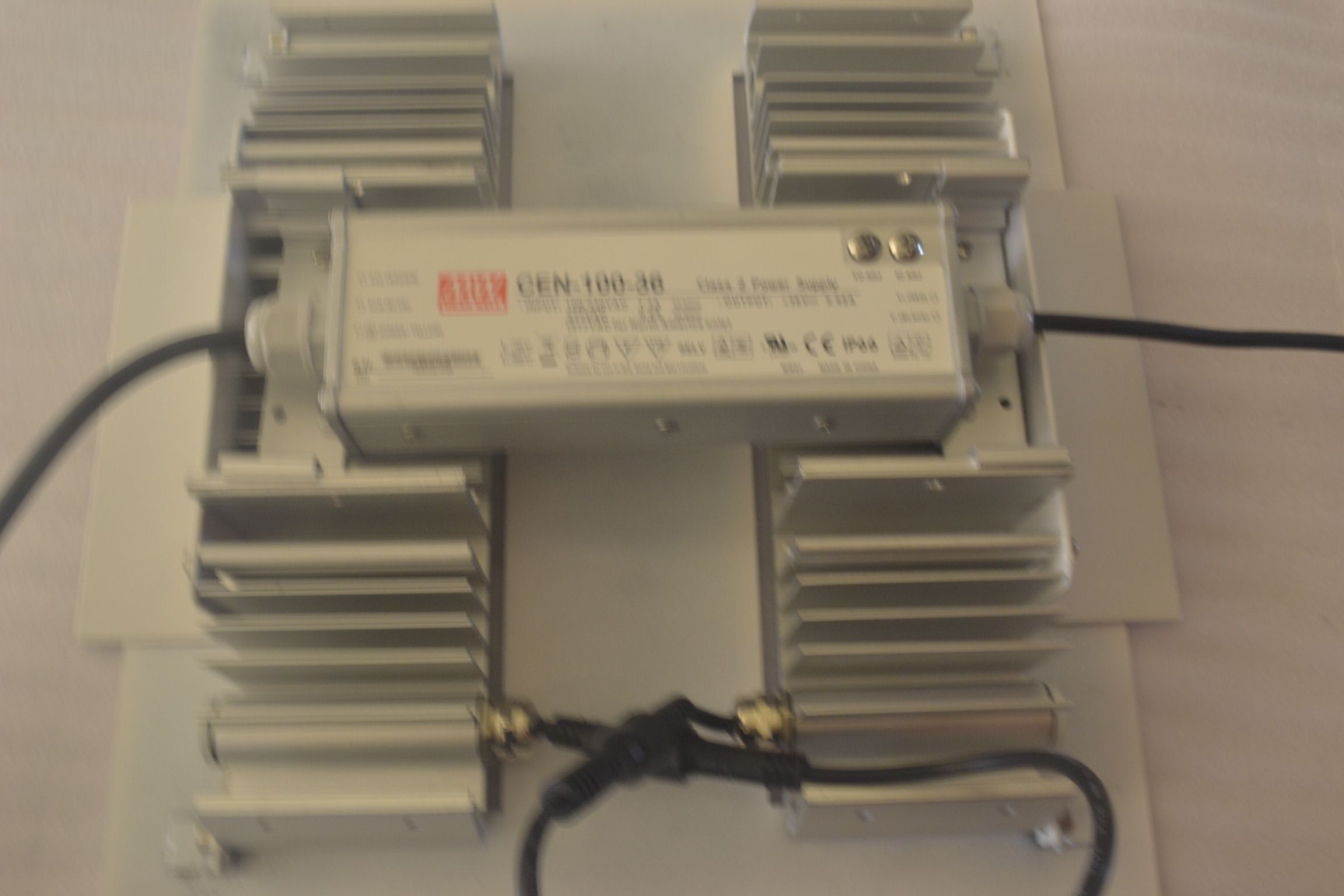

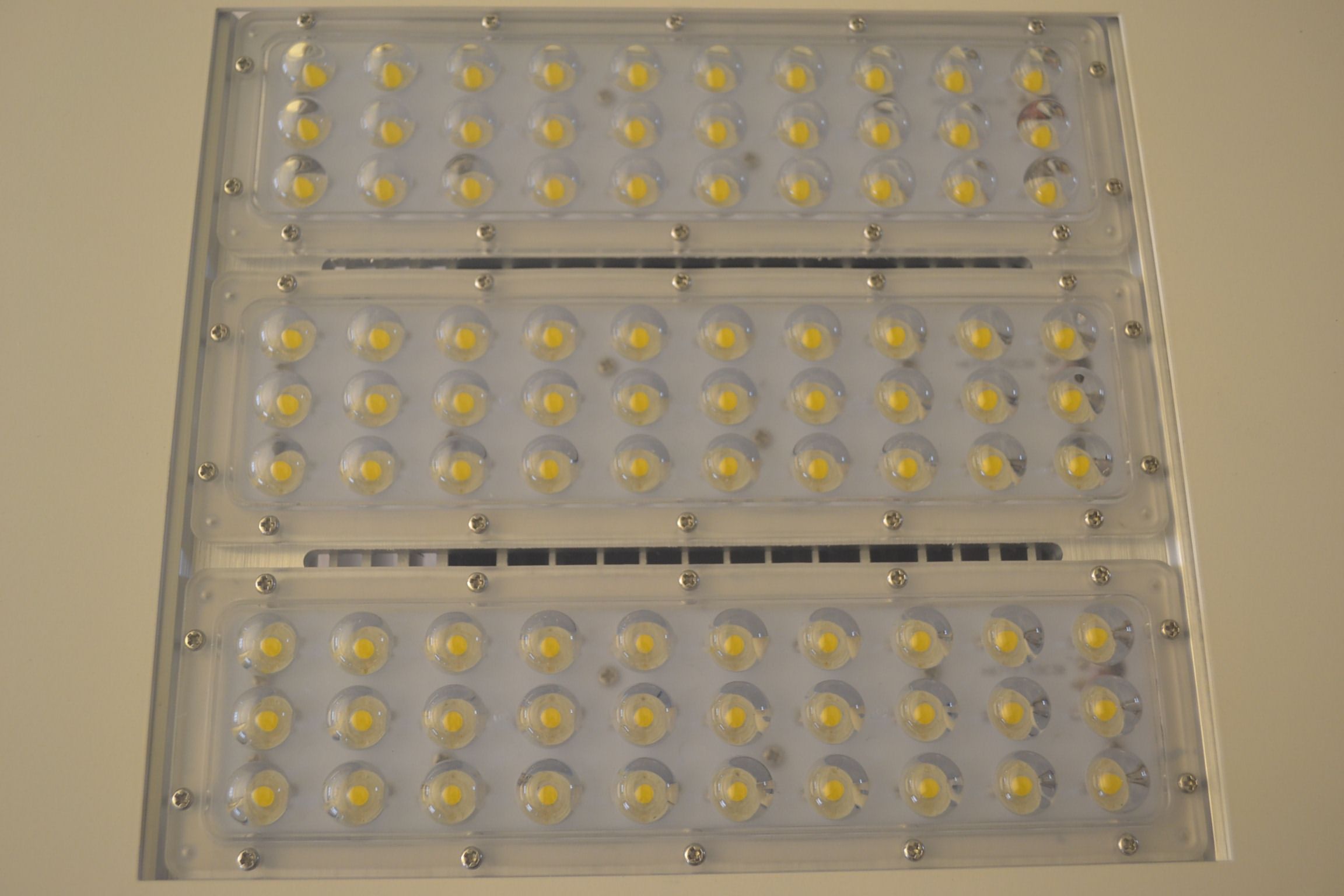

Products show :
Features of LED Canopy Light:
1. Air convection design, for high heat conductivity and quickly heat dissipation.
2. Fine workmanship and elegant appearance. Easy to install.
3. Optical PMMA integrated lens. Light transmission is more than 92%.
4. For outdoor Use with Fixture Environment friendly, no UV or IR radiation, no mercury.
5. LED Operating Life: Up to 50,000+Hours (5+years)
6. Solid-State, High Shock, Vibration Resistance.
7. Low Power Consumption, High Intensity.
8. Excellent thermal management, ultra long life.
9. Cree Chip, Meanwell driver, high quality
10. Patented high efficiency thermal design ,good heat dissipation
11. Different angel is available
12. CE TISIROHS certificate approval
13. 5years Warranty
14. Patent outer appearance desing and perfect overall
